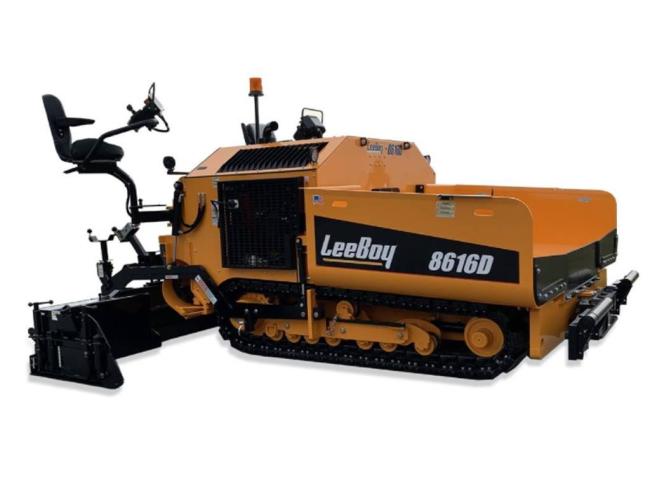

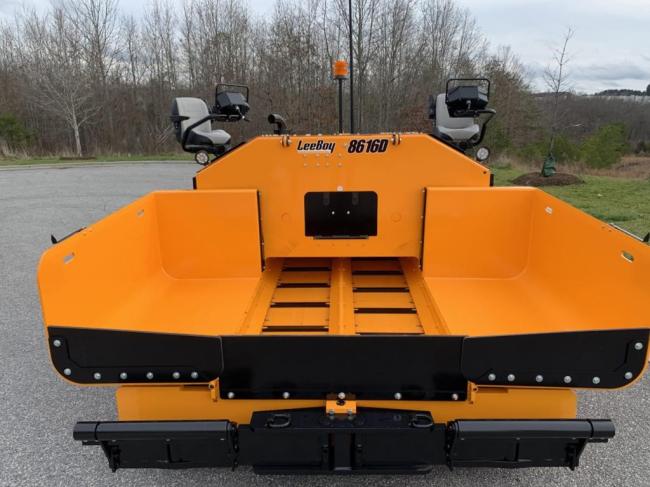

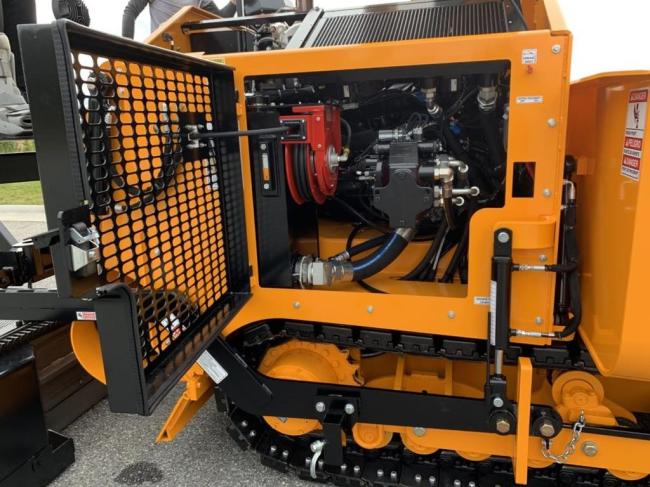

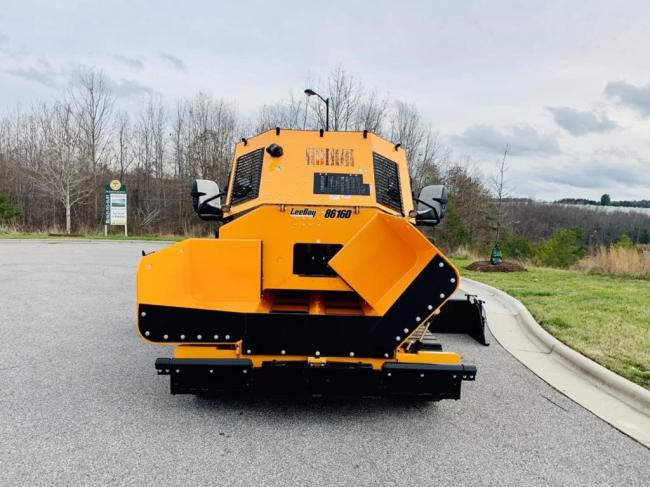

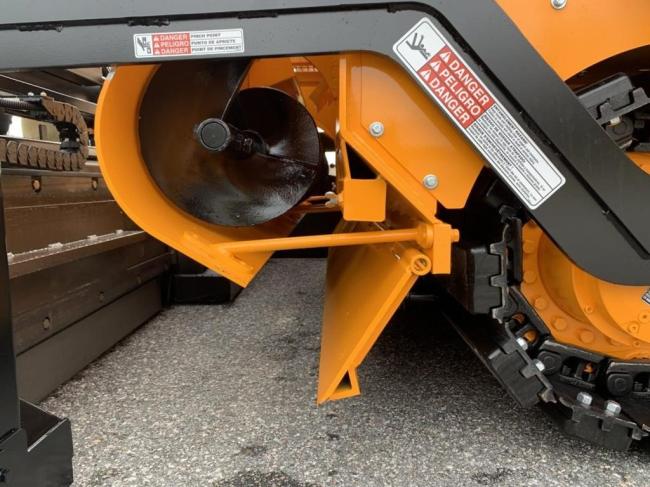

Leeboy 8616D

Asphalt Pavers

How can we help?

(301) 874-5500

The 8616D Asphalt Paver encompasses many features of a larger highway-class paver yet maintains a sleek footprint to better suit the commercial contractor looking for a heavier unit. Highly adaptable for heavy commercial jobs, the flexible spontaneous design gives the operator the ability to switch the unit from high deck to low deck in the matter of minutes. There’s nothing left to desire as this unit provides greater serviceability with easy to locate components, consistent material flow and the Legend HD PRO Screed for higher production yields.

Downloads & Documentation
Details

Engine

Kubota turbocharged diesel
Tier 4 Final – 127 HP (95 kW)
Remote mounted DOC + DPF + SCR
MURR I/O distributor blocks with LED lighting

Dimensions

Length: 16’ 4’
Width: 8’ 6” transport
10’ hopper wings down
Height: 6’ 8” low deck
7’ 10” high deck
Total Weight (with screed): 23,450 lbs

Capacities

Fuel: 37 gallons
Hydraulic: 31 gallons
Washdown tank: 7 gallons
DEF tank: 5 gallons

Paving Widths

Machine has variable paving widths up to 15’ 6”

Operator’s Controls

High deck/low deck configuration
Includes dual electronic steer

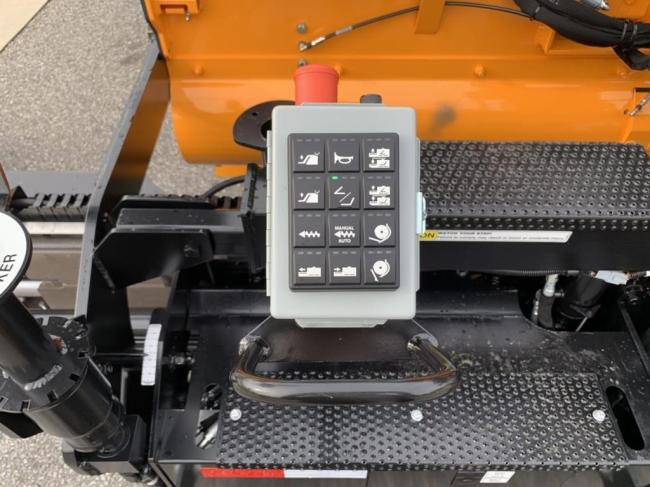

Dual, independent adjustable control stations interchangeable in the field

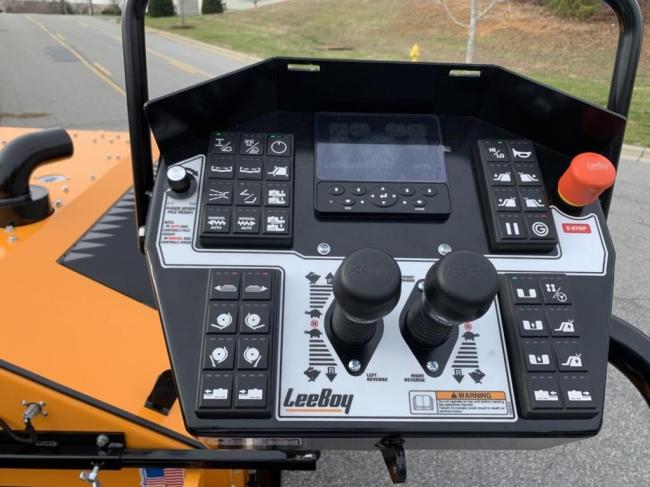

Dash panel includes augers, screed extension, cut-offs, screed, hopper wings, conveyors, grade controls, steering and lights
User-friendly, icon-based CAN Bus controls
Backlit keypad with LED indicator lights
Colored LED, sunlight viewable control screen with digital readouts. Review and monitor system vitals including: RPM, paving speeds, system pressures, screed temperature and generator usage

Downloads & Documentation
Links
Details
Engine
- Kubota turbocharged diesel
- Tier 4 Final – 127 HP (95 kW)
- Remote mounted DOC + DPF + SCR
- MURR I/O distributor blocks with LED lighting
Dimensions
- Length: 16’ 4’
- Width: 8’ 6” transport
  10’ hopper wings down
- Height: 6’ 8” low deck
  7’ 10” high deck
- Total Weight (with screed): 23,450 lbs
Capacities
- Fuel: 37 gallons
- Hydraulic: 31 gallons
- Washdown tank: 7 gallons
- DEF tank: 5 gallons
Paving Widths
- Machine has variable paving widths up to 15’ 6”
Operator’s Controls
- High deck/low deck configuration
- Includes dual electronic steer
- Dual, independent adjustable control stations interchangeable in the field
- Dash panel includes augers, screed extension, cut-offs, screed, hopper wings, conveyors, grade controls, steering and lights
- User-friendly, icon-based CAN Bus controls
- Backlit keypad with LED indicator lights
- Colored LED, sunlight viewable control screen with digital readouts. Review and monitor system vitals including: RPM, paving speeds, system pressures, screed temperature and generator usage
