Kleemann MC 160 PRR

Mobile Jaw Crushers1

How can we help?

(301) 874-5500

Properties

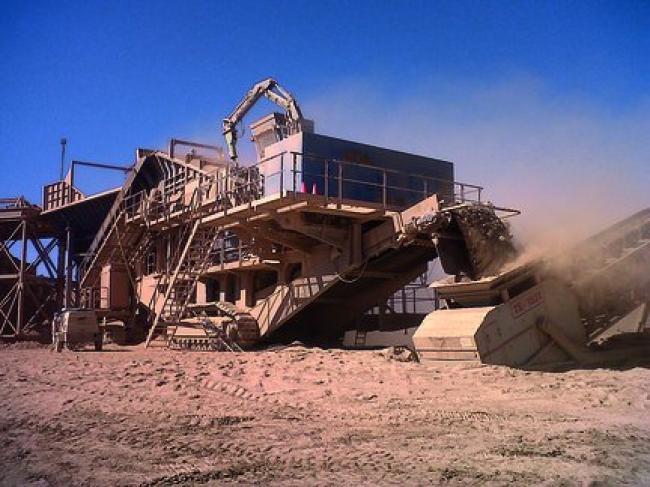

The MC 160 PRR is the largest track-mounted mobile jaw crusher by Kleemann. The key component of the plant, the almost 80 ton SStR 1600 jaw crusher, can process material with an edge length of up to 1500 x 900 mm. With a feed capacity of up to 1200 tons per hour, the MC 160 PRR is a real workaholic.

Two units: Feeding unit with apron conveyor, main unit with wobbler feeder
Each unit has a separate crawler chassis
Feeding with dump trucks (45 t loading capacity) possible

Properties

Two units: Feeding unit with apron conveyor, main unit with wobbler feeder
Each unit has a separate crawler chassis
Feeding with dump trucks (45 t loading capacity) possible

Specifications
Details

Specifications

CRUSHER - Crusher capacity:	335 hp
CRUSHER - Crusher drive type:	electric
CRUSHER - Crusher gap adjustment:	Hydraulically supported
CRUSHER - Crusher inlet (W x D):	1,600 mm x 1,250 mm
CRUSHER - Crusher weight (approx.):	160,950 lbs
CRUSHER - Gap width max.:	11 in
CRUSHER - Gap width min.:	4.5 in
CRUSHER - Single toggle jaw crusher type:	STR 1600 x 1250
CRUSHER DISCHARGE CONVEYOR - Discharge height approx.:	12 ft 7 in
CRUSHER DISCHARGE CONVEYOR - Width:	71 in
FEEDING UNIT - Feed height:	21 ft 12 in
FEEDING UNIT - Feed height with extension:	24 ft 7 in
FEEDING UNIT - Hopper volume:	78.5 yd³
FEEDING UNIT - Max. feed size:	59 in x 35 in x 21 in
POWER SUPPLY UNIT - Drive concept:	Diesel-electric
POWER SUPPLY UNIT - Power supply unit output:	778 hp
POWER SUPPLY UNIT - Rated speed:	1,500 rpm
PRIMARY SCREENING - Type:	Wobbler feeder
PRIMARY SCREENING - Width x length:	63 in x 9 ft 2 in
SIDE DISCHARGE CONVEYOR - Discharge height:	19 ft 8 in
SIDE DISCHARGE CONVEYOR - Length:	32 ft 10 in
SIDE DISCHARGE CONVEYOR - Width:	39 in
TRANSPORT - Transport weight of basic plant:	881,850 lbs
VIBRATING FEEDER - Length:	39 ft 4 in
VIBRATING FEEDER - Width:	63 in

Jaw crusher

Jaw crushers operate according to the principle of pressure crushing. The crushed material is crushed in the wedge-shaped pit between the fixed crusher jaw and the crusher jaw articulated on an eccentric shaft. The material is crushed by the elliptic course of movement and falls down due to gravity. This occurs until the material is smaller than the set crushing gap.

Innovative diesel-electric drive concept - impressive performance with the best possible consumption values

The crushing plants are equipped with efficient, powerful diesel-electric drives. They ensure environmentally friendly operation combined with low fuel consumption.

Efficient and powerful diesel-electric drive (A) for low fuel consumption (crusher and all conveyor belts are driven electrically)

External power supply (B) for even more economic application in quarries

Specifications

CRUSHER - Crusher capacity:	335 hp
CRUSHER - Crusher drive type:	electric
CRUSHER - Crusher gap adjustment:	Hydraulically supported
CRUSHER - Crusher inlet (W x D):	1,600 mm x 1,250 mm
CRUSHER - Crusher weight (approx.):	160,950 lbs
CRUSHER - Gap width max.:	11 in
CRUSHER - Gap width min.:	4.5 in
CRUSHER - Single toggle jaw crusher type:	STR 1600 x 1250
CRUSHER DISCHARGE CONVEYOR - Discharge height approx.:	12 ft 7 in
CRUSHER DISCHARGE CONVEYOR - Width:	71 in
FEEDING UNIT - Feed height:	21 ft 12 in
FEEDING UNIT - Feed height with extension:	24 ft 7 in
FEEDING UNIT - Hopper volume:	78.5 yd³
FEEDING UNIT - Max. feed size:	59 in x 35 in x 21 in
POWER SUPPLY UNIT - Drive concept:	Diesel-electric
POWER SUPPLY UNIT - Power supply unit output:	778 hp
POWER SUPPLY UNIT - Rated speed:	1,500 rpm
PRIMARY SCREENING - Type:	Wobbler feeder
PRIMARY SCREENING - Width x length:	63 in x 9 ft 2 in
SIDE DISCHARGE CONVEYOR - Discharge height:	19 ft 8 in
SIDE DISCHARGE CONVEYOR - Length:	32 ft 10 in
SIDE DISCHARGE CONVEYOR - Width:	39 in
TRANSPORT - Transport weight of basic plant:	881,850 lbs
VIBRATING FEEDER - Length:	39 ft 4 in
VIBRATING FEEDER - Width:	63 in

Details

Jaw crusher

Jaw crushers operate according to the principle of pressure crushing. The crushed material is crushed in the wedge-shaped pit between the fixed crusher jaw and the crusher jaw articulated on an eccentric shaft. The material is crushed by the elliptic course of movement and falls down due to gravity. This occurs until the material is smaller than the set crushing gap.

Innovative diesel-electric drive concept - impressive performance with the best possible consumption values

The crushing plants are equipped with efficient, powerful diesel-electric drives. They ensure environmentally friendly operation combined with low fuel consumption.

Efficient and powerful diesel-electric drive (A) for low fuel consumption (crusher and all conveyor belts are driven electrically)

External power supply (B) for even more economic application in quarries
