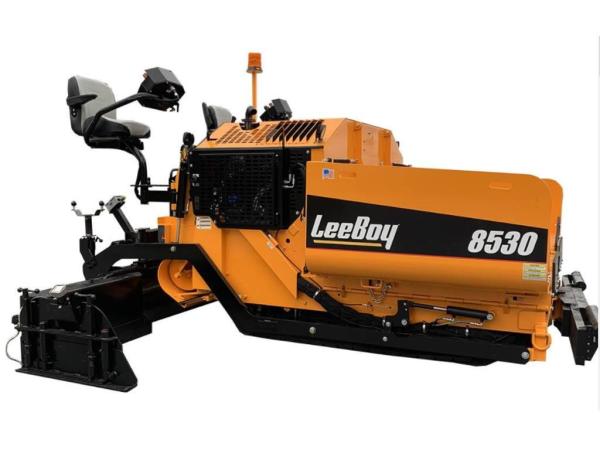

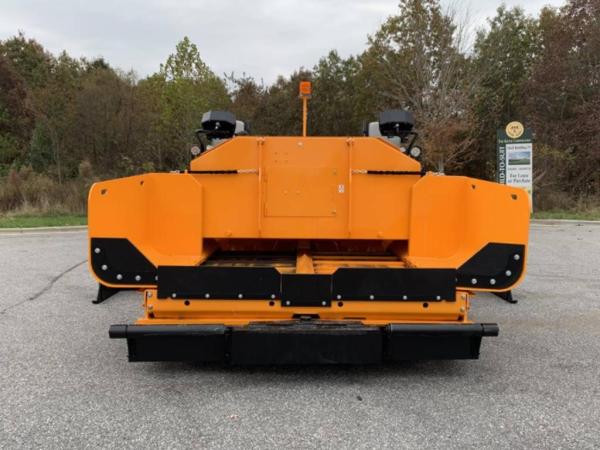

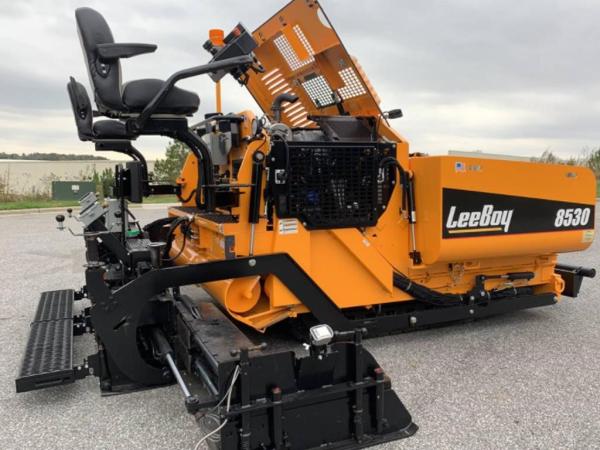

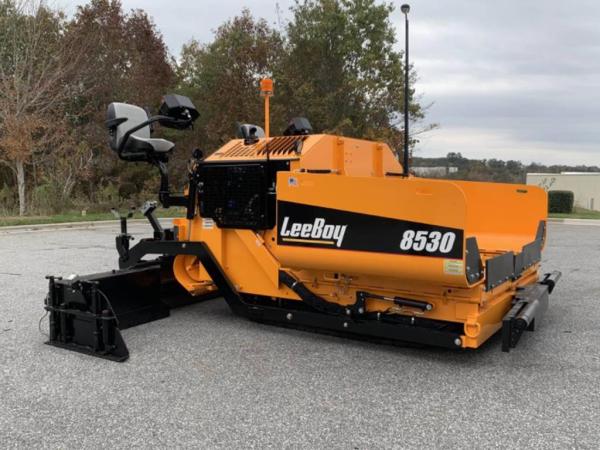

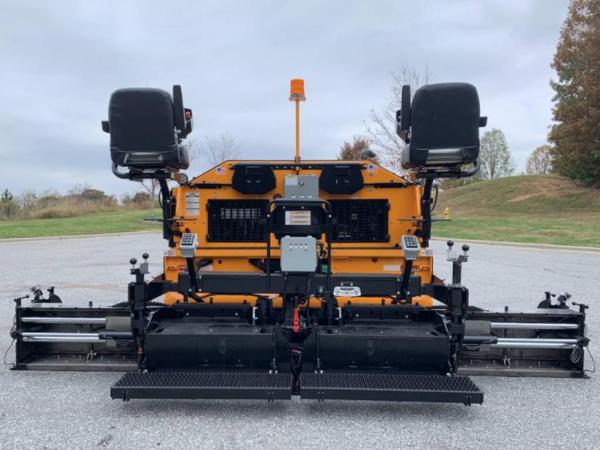

Leeboy 8530
| Make | Leeboy |
| Model | 8530 |
| Type | Asphalt Pavers |
How can we help?
Description
We’ve set the standards in heavy-commercial paving even higher! Equipped with exciting new features that were truly designed with the paving professional in mind, the LeeBoy 8530 is the new benchmark. Standard machine assets include the 4,150 lbs Legend HD PRO Screed with spring-loaded end gates, front adjustable conveyor chains, pivoting dual seating and controls as well as many other enhancements. And as always, LeeBoy’s wide slow-moving conveyor system moves material from the truck to the screed without segregation which ensures a flawless mat.
Models
Dimensions
- Length: 15’
- Width: 8’ 6” transport
10’ hopper wings down - Height: 6’ 8” low deck
7’ 9” high deck - Total Weight (with screed): 22,520 lbs
Capacities
- Fuel: 32 gallons
- Hydraulic: 25 gallons
- Washdown tank: 7 gallons
- DEF tank: 5 gallons
Paving Widths
- Variable paving widths up to 15’ 6?
Engine
- Kubota turbocharged diesel
- Tier 4 Final – 125 HP (93.2 kW)
- Remote mounted DOC + DPF + SCR
- MURR I/O distributor blocks with LED lighting
Operator’s Controls
- High deck/low deck configuration
- Includes dual electronic steer

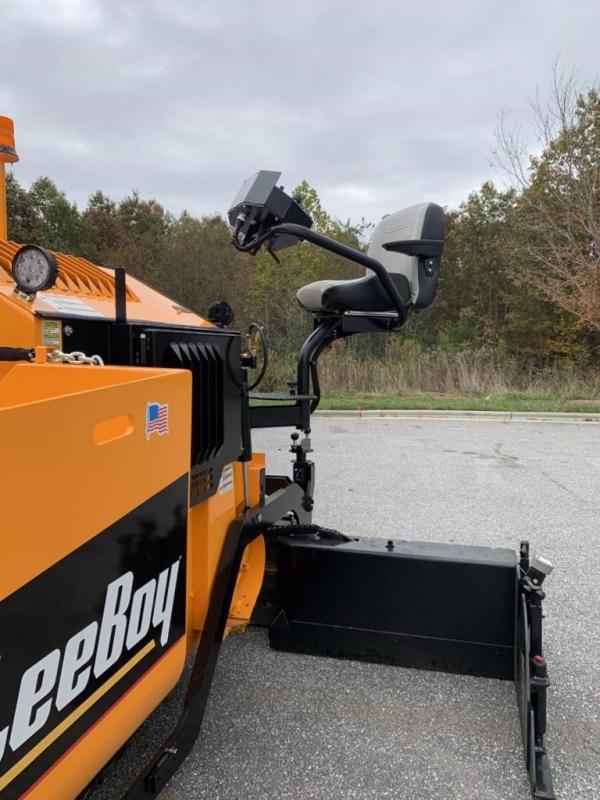

- Dual, independent adjustable control stations interchangeable in the field

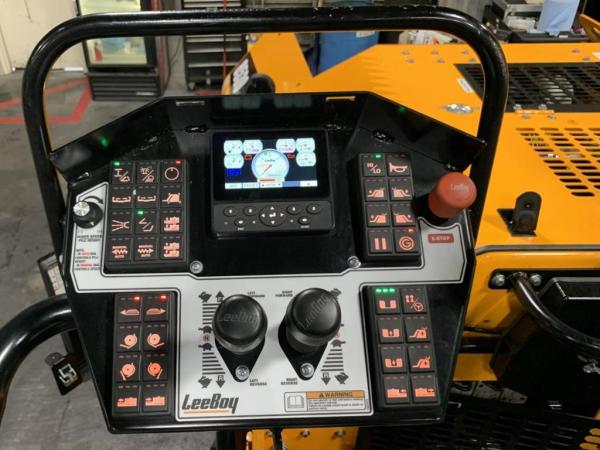

- Dash panel includes augers, screed extension, cut-offs, screed, hopper wings, conveyors, grade controls, steering and lights

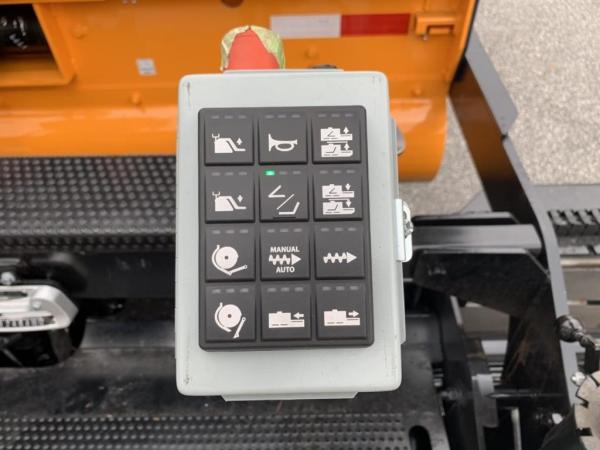

- User-friendly, icon-based CAN Bus controls
- Backlit keypad with LED indicator lights
- Colored LED, sunlight viewable control screen with digital readouts. Review and monitor system vitals including: RPM, paving speeds, system pressures, screed temperature and generator usage
