Ditch Witch JT120
| Make | Ditch Witch |
| Model | JT120 |
| Type | DW Directional Drills |
How can we help?
Description

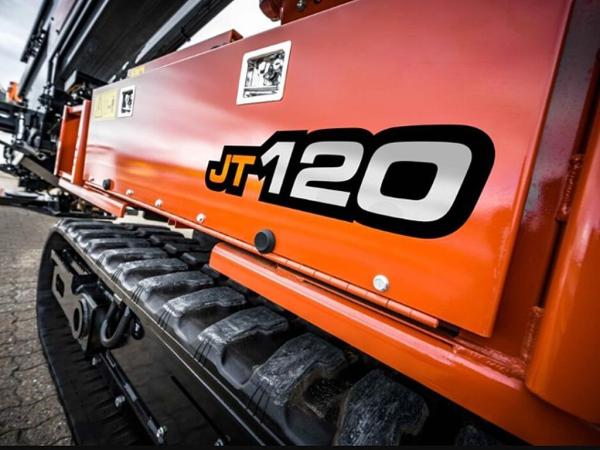

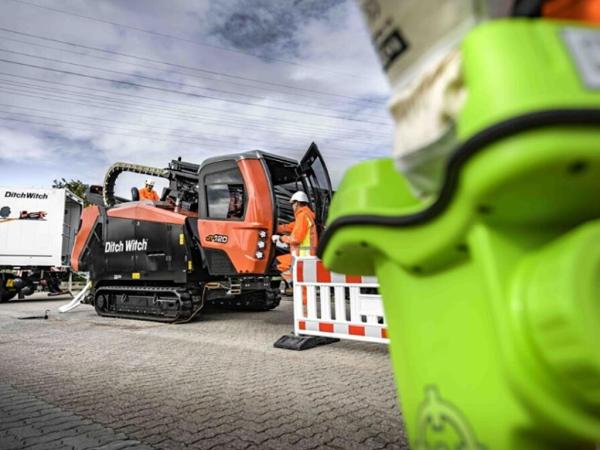

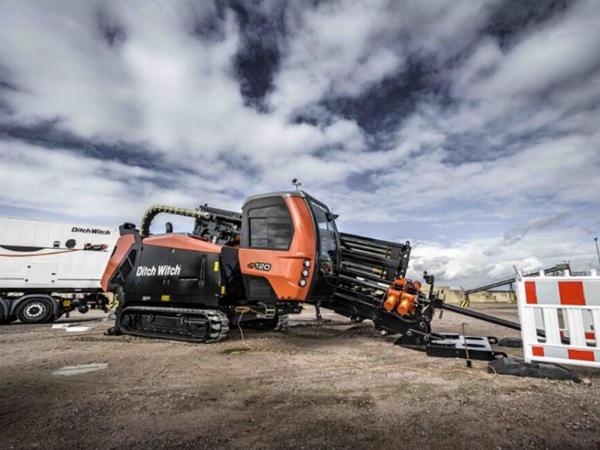

JT120 HORIZONTAL DIRECTIONAL DRILL
BUILT TO KEEP GOING.
Get ready to dominate even the toughest jobs. Built for maximum power, the JT120—the largest drill in the JT line—can handle long bores, large installs and difficult terrain with ease.
Loaded with 120,000 lbs (533.8 kN) of pullback/thrust and 15,500 ft·lbs (21015 N·m) of rotational torque, the JT120 not only opens you up to new types of jobs, but also moves through long bores and large diameter installs with eye-popping power. Plus, a 280-hp (209-kW) Stage V Cummins® engine reduces environmental impact without losing any power.
• At 80 dBA, the JT120 reduces jobsite noise for a more comfortable and productive jobsite.
• The new large displacement fluid pump with an increased fluid flow brings the GPMs needed to boost uptime.
• The new engine compartment and compartment panel design free up more room around critical components, making maintenance easier and more efficient.
• The 20-foot drill pipe helps your machine limit makeup/breakout and maximizes drilling time.

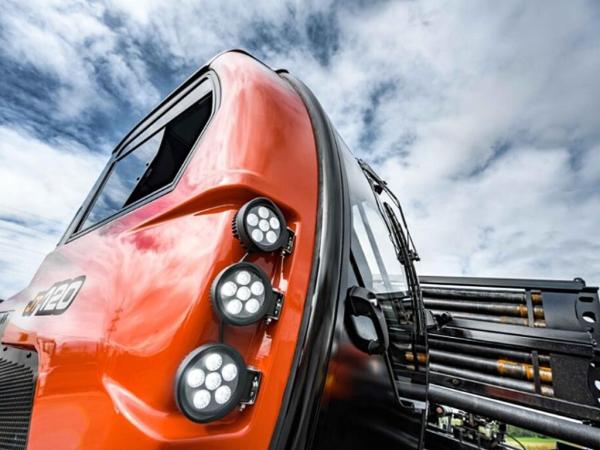

• The enclosed, climate-controlled cab features heated suspension seats, added legroom and two LED touchscreen displays.
• Independent stabilizers in the rear of the machine provide even more stability across uneven terrain.
• A wireless remote allows you to operate critical machine functions from outside the cab.
• I-beam anchor plate design allows you to stake down in varying soils, increasing stability across demanding jobs and tough terrain.
Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.
Specifications
- BATTERY (2 USED) - SAE cold crank rating @ 0°F (-18°C) : 950 amps
- BATTERY (2 USED) - SAE reserve capacity rating : 175 min
- DIMENSIONS - Angle of approach: 17°
- DIMENSIONS - Angle of departure: 17°
- DIMENSIONS - Entry angle, max: 12-18°
- DIMENSIONS - Height, w/ cab: 122 in | 3.10 m
- DIMENSIONS - Length : 453 in | 11.5 m
- DIMENSIONS - Operating weight: 47,186 lb | 21403 kg
- DIMENSIONS - Width : 100.4 in | 2.55 m
- DRILLING FLUID SYSTEM - Flow, max: 285 gpm | 1079 l/min
- DRILLING FLUID SYSTEM - Pressure, max: 1,100 psi | 76 bar
- FLUID CAPACITIES - Antifreeze tank: 20 gal | 76 L
- FLUID CAPACITIES - DEF tank: 12.2 gal | 46.3 L
- FLUID CAPACITIES - Engine lubrication oil, w/filter: 18.5 qt | 17.5 L
- FLUID CAPACITIES - Fuel tank: 120 gal | 454 L
- FLUID CAPACITIES - Hydraulic reservoir: 39 gal | 148 L
- NOISE LEVEL - :
- NOISE LEVEL - Operator sound pressure per ISO 6394: < or = 80 dBA
- OPERATION - Backreamer diameter: Soil dependent
- OPERATION - Bore diameter: 6.5 in 165 mm
- OPERATION - Carriage pullback travel speed: 210 fpm | 64 m/min
- OPERATION - Carriage thrust travel speed: 210 fpm | 64 m/min
- OPERATION - Ground travel speed forward/reverse: 2.8 mph | 5 km/h
- OPERATION - Pullback force: 120,000 lb | 533.8 kN
- OPERATION - Spindle speed, max: 190 rpm
- OPERATION - Spindle torque, max: 15,500 ft∙lb | 21015 N∙m
- OPERATION - Thrust force: 120,000 lb | 533.8 kN
- POWER - Aspiration : Turbocharged and charge air cooled
- POWER - Bore: 4.21 in | 107 mm
- POWER - Cooling medium: Liquid
- POWER - Displacement : 409 in³ | 6.7 L
- POWER - Emissions compliance : EPA Tier 4F | EU Stage V
- POWER - Engine : Cummins QSB6.7
- POWER - Fuel: Diesel
- POWER - Injection: Direct
- POWER - Manufacturer's gross power rating : 280 hp | 209 kW
- POWER - Number of cylinders: 6
- POWER - Rated speed: 2,200 rpm
- POWER - Stroke : 4.88 in | 124 mm
- POWER PIPE® HD (3.36DS) - Bend radius, min: 205 ft | 62.5 m
- POWER PIPE® HD (3.36DS) - Diameter of drill pipe: 3.95 in | 100 mm
- POWER PIPE® HD (3.36DS) - Diameter of drill pipe, tool joint end: 4.38 in | 111.2 mm
- POWER PIPE® HD (3.36DS) - Length of drill pipe: 240 in | 6.10 m
- POWER PIPE® HD (3.36DS) - Weight of drill pipe, lined: 285 lb | 129 kg
- shippingheight: 122.04724397000000
- shippingheightUnit: inch
- shippinglength: 452.7559050500000
- shippinglengthUnit: inch
- shippingweight: 47185.537935860000
- shippingweightUnit: pound
- shippingwidth: 100.39370068500000
- shippingwidthUnit: inch
- VIBRATION LEVEL - Level: Average vibration transmitted to the operator’s hand and whole body during normal operation does not exceed 2.5 and 0.5 m/sec² respectively
