AT120 ALL TERRAIN DIRECTIONAL DRILL

ALL CONQUERING. ALL-POWERFUL. ALL TERRAIN.

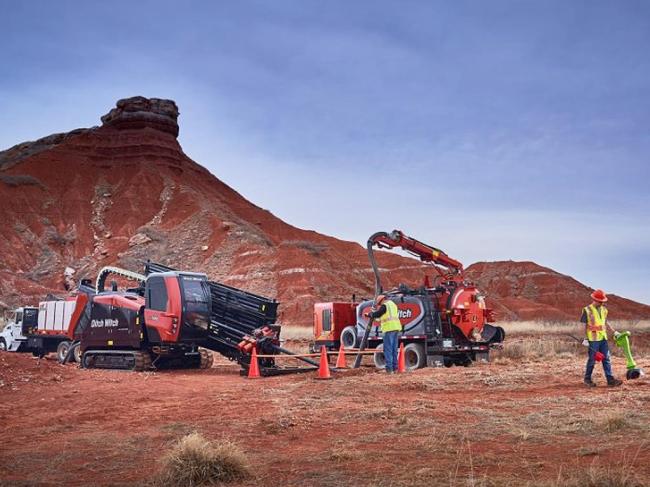

Whether you’re facing the world’s tightest timeline or the world’s rockiest mountain, there’s a drill for that. The world’s largest All Terrain drill, the AT120 was built to dominate the toughest challenges on the planet.

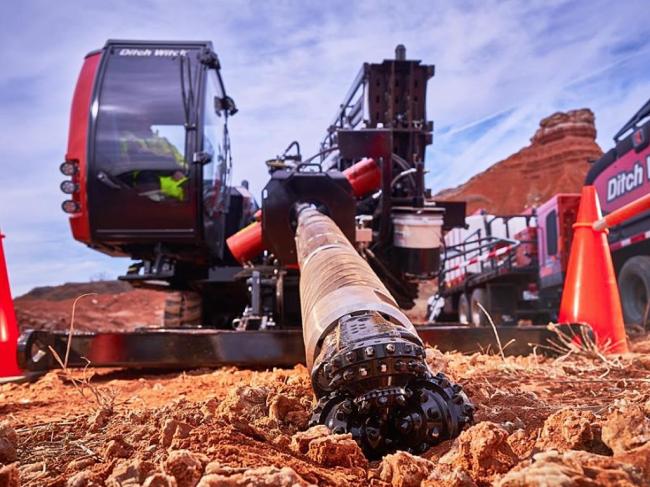

ALL TERRAIN

Another entrant in our storied family of All Terrain machines, the AT120 is made with that same All Terrain Technology that enables rock drilling at a low fluid level, decreasing jobsite waste, minimizing cleanup, and reducing environment impact.

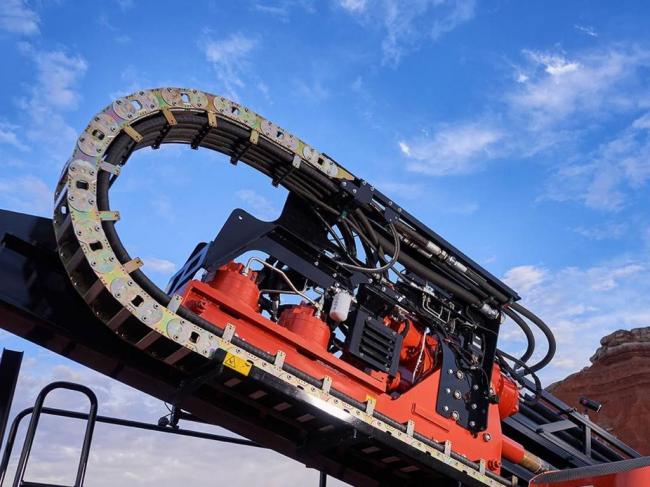

POWER

Powered by a 280-HP Stage V Cummins engine, the AT120 packs the punch needed to dominate long bores and large diameter installs. The AT120 is loaded with 120,000 lbs of thrust/pullback, 15,00 ft-lbs of rotational torque and an additional 3,000 ft-lbs of inner rotational torque.

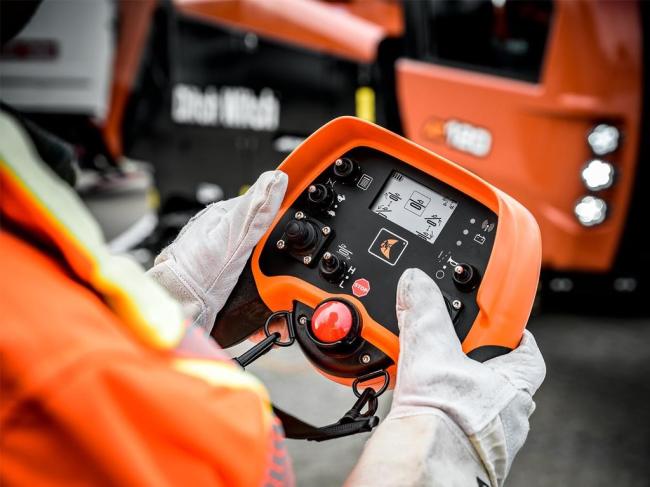

PRODUCTIVITY

The AT120 features patent-pending Virtually Assisted Makeup and Breakout (VAM) technology that makes it easier for operators to make up and breakout tool joints without the need for floats and sensors. The machine is also compatible with 20-foot drill pipe and its dual rod box design allows up to 360 ft. of drill pipe on board while making it easy to add or remove pipe as necessary.

DESIGNED FOR UPTIME

Designed for maximum uptime, the AT120 features a range of innovative improvements including a new displacement fluid pump for added flid flow, an integrated wireline platform that allows the working hand greater access when connecting wire, and open top, angled front wrenches that bring greater visibility of machine functions during operation.

OPERATOR’S STATION

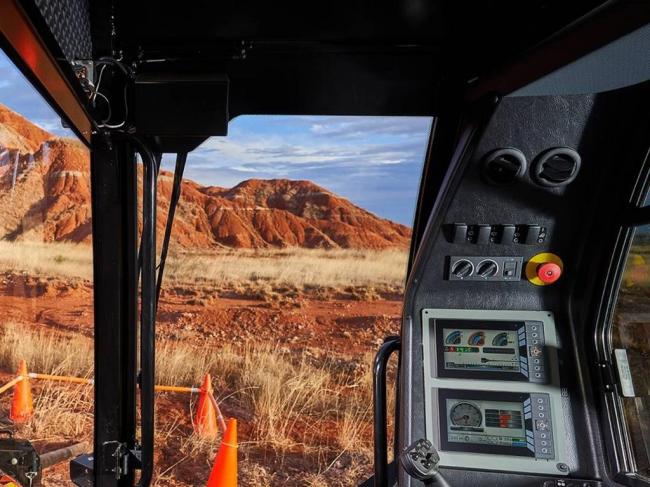

Best-in-class, fully enclosed cab features premium climate-controlled heat and air, heated suspension seats, added legroom and two LED touch screen displays for greater operator comfort and productivity. The cab also offers the best view to all critical vision points and a real-time carriage-position indicator that provides you insight into the exact carriage position for increased productivity and intuitive operation.

SUPERIOR CUSTOMER SUPPORT

Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service and expert advice, our Ditch Witch dealer has it all for you.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.


AT120 ALL TERRAIN DIRECTIONAL DRILL

ALL CONQUERING. ALL-POWERFUL. ALL TERRAIN.

Whether you’re facing the world’s tightest timeline or the world’s rockiest mountain, there’s a drill for that. The world’s largest All Terrain drill, the AT120 was built to dominate the toughest challenges on the planet.

ALL TERRAIN

Another entrant in our storied family of All Terrain machines, the AT120 is made with that same All Terrain Technology that enables rock drilling at a low fluid level, decreasing jobsite waste, minimizing cleanup, and reducing environment impact.

POWER

Powered by a 280-HP Stage V Cummins engine, the AT120 packs the punch needed to dominate long bores and large diameter installs. The AT120 is loaded with 120,000 lbs of thrust/pullback, 15,00 ft-lbs of rotational torque and an additional 3,000 ft-lbs of inner rotational torque.

PRODUCTIVITY

The AT120 features patent-pending Virtually Assisted Makeup and Breakout (VAM) technology that makes it easier for operators to make up and breakout tool joints without the need for floats and sensors. The machine is also compatible with 20-foot drill pipe and its dual rod box design allows up to 360 ft. of drill pipe on board while making it easy to add or remove pipe as necessary.

DESIGNED FOR UPTIME

Designed for maximum uptime, the AT120 features a range of innovative improvements including a new displacement fluid pump for added flid flow, an integrated wireline platform that allows the working hand greater access when connecting wire, and open top, angled front wrenches that bring greater visibility of machine functions during operation.

OPERATOR’S STATION

Best-in-class, fully enclosed cab features premium climate-controlled heat and air, heated suspension seats, added legroom and two LED touch screen displays for greater operator comfort and productivity. The cab also offers the best view to all critical vision points and a real-time carriage-position indicator that provides you insight into the exact carriage position for increased productivity and intuitive operation.

SUPERIOR CUSTOMER SUPPORT

Your Ditch Witch equipment is backed by a worldwide network of dealers you can count on for unmatched commitment to your success. From genuine Ditch Witch parts to factory-trained service and expert advice, our Ditch Witch dealer has it all for you.

Similar models may be shown in addition to the featured model. Equipment may be shown with options. Specifications are general and subject to change without notice. If exact measurements are required, equipment should be weighed and measured. Due to selected options, delivered equipment may not necessarily match that shown.


Specifications

ALL TERRAIN PIPE - Bend radius, min:
205 ft | 62.5 m
ALL TERRAIN PIPE - Diameter of drill pipe :
3.95 in | 100 mm
ALL TERRAIN PIPE - Length of drill pipe:
240 in | 6.09 m
ALL TERRAIN PIPE - Tool joint, outside diameter:
4.38 in | 111.2 mm
ALL TERRAIN PIPE - Weight of drill pipe:
395 lb | 179.1 kg
ALL TERRAIN PIPE - Weight of drill pipe & large box (18 pipe):
ALL TERRAIN PIPE - Weight of drill pipe & large box (24 pipe):
ALL TERRAIN PIPE - Weight of drill pipe & small box (12 pipe):
ALL TERRAIN PIPE - Weight of drill pipe & small box (20 pipe):
ALL TERRAIN PIPE - Weight of drill pipe & small box (9 pipe):
ALL TERRAIN PIPE - Weight of drill pipe, full box (12 pipe:
ALL TERRAIN PIPE - Weight of drill pipe, lined :
ALL TERRAIN PIPE COBBLE PIPE - Joint diameter:
ALL TERRAIN PIPE COBBLE PIPE - Length of drill pipe, nominal:
ALL TERRAIN PIPE COBBLE PIPE - Pipe diameter:
ALL TERRAIN PIPE COBBLE PIPE - Weight of drill pipe & large box (35 pipe):
ALL TERRAIN PIPE COBBLE PIPE - Weight of drill pipe & small box (20 pipe):
ALL TERRAIN PIPE COBBLE PIPE - Weight of drill pipe w/inner rod:
BATTERY (2 USED) - SAE cold crank rating @ 0°F (-18°C) :
950 amps
BATTERY (2 USED) - SAE reserve capacity rating :
175 min
BATTERY (TIER 4) - SAE cold crank rating @ 0°F (-18°C):
BATTERY (TIER 4) - SAE reserve capacity rating :
BATTERY (TIER 4I) - SAE cold crank rating @ 0°F (-18°C):
BATTERY (TIER 4I) - SAE reserve capacity rating :
DIMENSIONS - Angle of approach :
17°
DIMENSIONS - Angle of approach, w/cab:
DIMENSIONS - Angle of departure:
17°
DIMENSIONS - Drill rack entry angle, max:
DIMENSIONS - Drill rack entry angle, tracks on ground:
DIMENSIONS - Drilling unit operating mass (water tank empty, 50 drill pipes, T4):
DIMENSIONS - Drilling unit operating mass (water tank empty, 50 drill pipes, T4i):
DIMENSIONS - Drilling unit operating mass (water tank full, 50 drill pipes, T4):
DIMENSIONS - Drilling unit operating mass (water tank full, 50 drill pipes, T4i):
DIMENSIONS - Entry angle:
12-18°
DIMENSIONS - Ground clearance:
DIMENSIONS - Height :
DIMENSIONS - Height w/ cab:
121.5 in | 3.09 m
DIMENSIONS - Length :
453 in | 11.5 m
DIMENSIONS - Length, mobiling:
DIMENSIONS - Length, trailering:
DIMENSIONS - Operating mass:
49,761 lb | 22571 kg
DIMENSIONS - Operating mass w/o pipe:
DIMENSIONS - Transport height:
DIMENSIONS - Transport Length:
DIMENSIONS - Weight:
DIMENSIONS - Weight w/ cab:
DIMENSIONS - Weight w/ full rack:
DIMENSIONS - Weight w/o pipe:
DIMENSIONS - Width :
100.4 in | 2.55 m
DIMENSIONS - Width w/ cab:
DRILLING FLUID SYSTEM - Flow, max:
285 gpm | 1079 l/min
DRILLING FLUID SYSTEM - Pressure, max:
1,100 psi | 76 bar
FLUID CAPACITIES (TIER 3) - Antifreeze tank:
FLUID CAPACITIES (TIER 3) - Diesel exhaust fluid tank:
FLUID CAPACITIES (TIER 3) - Engine lubrication oil w/filter :
FLUID CAPACITIES (TIER 3) - Engine lubrication oil, w/filter:
FLUID CAPACITIES (TIER 3) - Fuel tank :
FLUID CAPACITIES (TIER 3) - Hydraulic reservoir :
FLUID CAPACITIES (TIER 4) - Diesel exhaust fluid tank:
FLUID CAPACITIES (TIER 4) - Drilling fluid for antifreeze tank :
FLUID CAPACITIES (TIER 4) - Engine cooling system :
FLUID CAPACITIES (TIER 4) - Engine lubrication oil w/filter :
FLUID CAPACITIES (TIER 4) - Fuel tank :
FLUID CAPACITIES (TIER 4) - Hydraulic reservoir :
FLUID CAPACITIES - Antifreeze tank:
20 gal | 76 L
FLUID CAPACITIES - Diesel exhaust fluid tank:
FLUID CAPACITIES - Engine cooling system:
FLUID CAPACITIES - Engine lubrication oil, w/filter:
18.5 qt | 17.5 L
FLUID CAPACITIES - Fuel tank :
97 gal | 370 L
FLUID CAPACITIES - Hydraulic reservoir :
47 gal | 180 L
NOISE LEVEL - Exterior sound power:
NOISE LEVEL - Operator sound pressure per ISO 6394:
< or = 80 dBA
NOISE LEVEL - Operator sound w/cab:
OPERATION - Backream diameter:
Soil dependent
OPERATION - Bore diameter:
6.5 in | 165 mm
OPERATION - Bore diameter (All Terrain w/Rockmaster™ 822):
OPERATION - Bore diameter (All Terrain w/Rockmaster™ 86):
OPERATION - Carriage pullback travel speed:
210 fpm | 64 m/min
OPERATION - Carriage thrust travel speed:
210 fpm | 64 m/min
OPERATION - Daily average fuel usage (per hour):
OPERATION - Ground travel speed forward/reverse:
2.8 mph | 5 km/h
OPERATION - Pullback force:
120,000 lb | 533.8 kN
OPERATION - Spindle speed (AT inner spindle), max:
250 rpm
OPERATION - Spindle speed, max:
200 rpm
OPERATION - Spindle torque (AT inner spindle), max:
3,000 ft∙lb | 4067 N∙m
OPERATION - Spindle torque, max:
15,500 ft∙lb | 21015 N∙m
OPERATION - Thrust force:
120,000 lb | 533.8 kN
POWER (TIER 3) - Aspiration:
POWER (TIER 3) - Bore:
POWER (TIER 3) - Cooling medium :
POWER (TIER 3) - Displacement :
POWER (TIER 3) - Emissions compliance Tier 3:
POWER (TIER 3) - Engine :
POWER (TIER 3) - Fuel :
POWER (TIER 3) - Injection :
POWER (TIER 3) - Manufacturer’s gross power rating :
POWER (TIER 3) - Number of cylinders :
POWER (TIER 3) - Peak gross power @ 2,000 rpm:
POWER (TIER 3) - Rated speed :
POWER (TIER 3) - Stroke :
POWER (TIER 4) - Aspiration :
POWER (TIER 4) - Bore:
POWER (TIER 4) - Cooling medium:
POWER (TIER 4) - Displacement :
POWER (TIER 4) - Emissions compliance :
POWER (TIER 4) - Engine :
POWER (TIER 4) - Estimated net power rating:
POWER (TIER 4) - Fuel:
POWER (TIER 4) - Injection:
POWER (TIER 4) - Manufacturer's gross power rating :
POWER (TIER 4) - Number of cylinders:
POWER (TIER 4) - Rated speed:
POWER (TIER 4) - Stroke :
POWER (TIER 4I) - Aspiration :
POWER (TIER 4I) - Bore:
POWER (TIER 4I) - Cooling medium:
POWER (TIER 4I) - Displacement :
POWER (TIER 4I) - Emissions compliance :
POWER (TIER 4I) - Engine :
POWER (TIER 4I) - Fuel:
POWER (TIER 4I) - Injection:
POWER (TIER 4I) - Manufacturer's gross power rating :
POWER (TIER 4I) - Number of cylinders:
POWER (TIER 4I) - Rated speed:
POWER (TIER 4I) - Stroke :
POWER - Aspiration :
Turbocharged & charge air cooled
POWER - Bore:
4.21 in | 107 mm
POWER - Cooling medium:
Liquid
POWER - Displacement :
409 in³ | 6.7 L
POWER - Emissions compliance :
EPA Tier 4F | EU Stage V
POWER - Engine :
Cummins® QSB6.7
POWER - Fuel:
Diesel
POWER - Injection:
Direct
POWER - Manufacturer's gross power rating :
280 hp | 209 kW
POWER - Number of cylinders:
6
POWER - Power bulge at 2,000 rpm:
POWER - Rated speed:
2,200 rpm
POWER - Stroke :
4.88 in | 124 mm
POWER PIPE® - Bend radius, min:
POWER PIPE® - Diameter of drill pipe:
POWER PIPE® - Diameter of drill pipe, tool joint end:
POWER PIPE® - Joint diameter:
POWER PIPE® - Length:
POWER PIPE® - Length of drill pipe, nominal :
POWER PIPE® - Pipe diameter :
POWER PIPE® - Weight of drill pipe & large box (40 pipe):
POWER PIPE® - Weight of drill pipe & large box (50 pipe):
POWER PIPE® - Weight of drill pipe & small box (20 pipe):
POWER PIPE® - Weight of drill pipe & small box (25 pipe):
POWER PIPE® - Weight of drill pipe, lined:
POWER PIPE® HD - Bend radius, min:
205 ft | 62.5 m
POWER PIPE® HD - Diameter of drill pipe, tool joint end:
4.38 in | 111.2 mm
POWER PIPE® HD - Joint diameter:
POWER PIPE® HD - Length:
POWER PIPE® HD - Length of dril pipe, nominal:
240 in | 6.09 m
POWER PIPE® HD - Pipe diameter:
3.95 in | 100 mm
POWER PIPE® HD - Weight of drill pipe & large box (48 pipe):
POWER PIPE® HD - Weight of drill pipe & small box (24 pipe):
POWER PIPE® HD - Weight of drill pipe and large box (28 pipe):
POWER PIPE® HD - Weight of drill pipe and large box (40 pipe):
POWER PIPE® HD - Weight of drill pipe and small box (16 pipe):
POWER PIPE® HD - Weight of drill pipe and small box (20 pipe):
POWER PIPE® HD - Weight of drill pipe, lined:
296 lb | 134.2 kg
UFE DRILL PIPE - Bend radius, min :
UFE DRILL PIPE - Diameter of drill pipe:
UFE DRILL PIPE - Diameter of drill pipe, tool joint end :
UFE DRILL PIPE - Length of drill pipe, nominal :
UFE DRILL PIPE - Weight of drill pipe :
VIBRATION LEVEL - Level:
Average vibration transmitted to the operator’s hand and whole body during normal operation does not exceed 2.5 and 0.5 m/sec² respectively.
WEIGHT CONFIGURATION - Cab option:
WEIGHT CONFIGURATION - Deduct Tier 3 engine option:
WEIGHT CONFIGURATION - HD anchor option:
WEIGHT CONFIGURATION - Standard anchor option:
  • Specifications

    Specifications

    ALL TERRAIN PIPE - Bend radius, min:
    		205 ft | 62.5 m
    ALL TERRAIN PIPE - Diameter of drill pipe :
    		3.95 in | 100 mm
    ALL TERRAIN PIPE - Length of drill pipe:
    		240 in | 6.09 m
    ALL TERRAIN PIPE - Tool joint, outside diameter:
    		4.38 in | 111.2 mm
    ALL TERRAIN PIPE - Weight of drill pipe:
    		395 lb | 179.1 kg
    ALL TERRAIN PIPE - Weight of drill pipe & large box (18 pipe):
    ALL TERRAIN PIPE - Weight of drill pipe & large box (24 pipe):
    ALL TERRAIN PIPE - Weight of drill pipe & small box (12 pipe):
    ALL TERRAIN PIPE - Weight of drill pipe & small box (20 pipe):
    ALL TERRAIN PIPE - Weight of drill pipe & small box (9 pipe):
    ALL TERRAIN PIPE - Weight of drill pipe, full box (12 pipe:
    ALL TERRAIN PIPE - Weight of drill pipe, lined :
    ALL TERRAIN PIPE COBBLE PIPE - Joint diameter:
    ALL TERRAIN PIPE COBBLE PIPE - Length of drill pipe, nominal:
    ALL TERRAIN PIPE COBBLE PIPE - Pipe diameter:
    ALL TERRAIN PIPE COBBLE PIPE - Weight of drill pipe & large box (35 pipe):
    ALL TERRAIN PIPE COBBLE PIPE - Weight of drill pipe & small box (20 pipe):
    ALL TERRAIN PIPE COBBLE PIPE - Weight of drill pipe w/inner rod:
    BATTERY (2 USED) - SAE cold crank rating @ 0°F (-18°C) :
    		950 amps
    BATTERY (2 USED) - SAE reserve capacity rating :
    		175 min
    BATTERY (TIER 4) - SAE cold crank rating @ 0°F (-18°C):
    BATTERY (TIER 4) - SAE reserve capacity rating :
    BATTERY (TIER 4I) - SAE cold crank rating @ 0°F (-18°C):
    BATTERY (TIER 4I) - SAE reserve capacity rating :
    DIMENSIONS - Angle of approach :
    		17°
    DIMENSIONS - Angle of approach, w/cab:
    DIMENSIONS - Angle of departure:
    		17°
    DIMENSIONS - Drill rack entry angle, max:
    DIMENSIONS - Drill rack entry angle, tracks on ground:
    DIMENSIONS - Drilling unit operating mass (water tank empty, 50 drill pipes, T4):
    DIMENSIONS - Drilling unit operating mass (water tank empty, 50 drill pipes, T4i):
    DIMENSIONS - Drilling unit operating mass (water tank full, 50 drill pipes, T4):
    DIMENSIONS - Drilling unit operating mass (water tank full, 50 drill pipes, T4i):
    DIMENSIONS - Entry angle:
    		12-18°
    DIMENSIONS - Ground clearance:
    DIMENSIONS - Height :
    DIMENSIONS - Height w/ cab:
    		121.5 in | 3.09 m
    DIMENSIONS - Length :
    		453 in | 11.5 m
    DIMENSIONS - Length, mobiling:
    DIMENSIONS - Length, trailering:
    DIMENSIONS - Operating mass:
    		49,761 lb | 22571 kg
    DIMENSIONS - Operating mass w/o pipe:
    DIMENSIONS - Transport height:
    DIMENSIONS - Transport Length:
    DIMENSIONS - Weight:
    DIMENSIONS - Weight w/ cab:
    DIMENSIONS - Weight w/ full rack:
    DIMENSIONS - Weight w/o pipe:
    DIMENSIONS - Width :
    		100.4 in | 2.55 m
    DIMENSIONS - Width w/ cab:
    DRILLING FLUID SYSTEM - Flow, max:
    		285 gpm | 1079 l/min
    DRILLING FLUID SYSTEM - Pressure, max:
    		1,100 psi | 76 bar
    FLUID CAPACITIES (TIER 3) - Antifreeze tank:
    FLUID CAPACITIES (TIER 3) - Diesel exhaust fluid tank:
    FLUID CAPACITIES (TIER 3) - Engine lubrication oil w/filter :
    FLUID CAPACITIES (TIER 3) - Engine lubrication oil, w/filter:
    FLUID CAPACITIES (TIER 3) - Fuel tank :
    FLUID CAPACITIES (TIER 3) - Hydraulic reservoir :
    FLUID CAPACITIES (TIER 4) - Diesel exhaust fluid tank:
    FLUID CAPACITIES (TIER 4) - Drilling fluid for antifreeze tank :
    FLUID CAPACITIES (TIER 4) - Engine cooling system :
    FLUID CAPACITIES (TIER 4) - Engine lubrication oil w/filter :
    FLUID CAPACITIES (TIER 4) - Fuel tank :
    FLUID CAPACITIES (TIER 4) - Hydraulic reservoir :
    FLUID CAPACITIES - Antifreeze tank:
    		20 gal | 76 L
    FLUID CAPACITIES - Diesel exhaust fluid tank:
    FLUID CAPACITIES - Engine cooling system:
    FLUID CAPACITIES - Engine lubrication oil, w/filter:
    		18.5 qt | 17.5 L
    FLUID CAPACITIES - Fuel tank :
    		97 gal | 370 L
    FLUID CAPACITIES - Hydraulic reservoir :
    		47 gal | 180 L
    NOISE LEVEL - Exterior sound power:
    NOISE LEVEL - Operator sound pressure per ISO 6394:
    		< or = 80 dBA
    NOISE LEVEL - Operator sound w/cab:
    OPERATION - Backream diameter:
    		Soil dependent
    OPERATION - Bore diameter:
    		6.5 in | 165 mm
    OPERATION - Bore diameter (All Terrain w/Rockmaster™ 822):
    OPERATION - Bore diameter (All Terrain w/Rockmaster™ 86):
    OPERATION - Carriage pullback travel speed:
    		210 fpm | 64 m/min
    OPERATION - Carriage thrust travel speed:
    		210 fpm | 64 m/min
    OPERATION - Daily average fuel usage (per hour):
    OPERATION - Ground travel speed forward/reverse:
    		2.8 mph | 5 km/h
    OPERATION - Pullback force:
    		120,000 lb | 533.8 kN
    OPERATION - Spindle speed (AT inner spindle), max:
    		250 rpm
    OPERATION - Spindle speed, max:
    		200 rpm
    OPERATION - Spindle torque (AT inner spindle), max:
    		3,000 ft∙lb | 4067 N∙m
    OPERATION - Spindle torque, max:
    		15,500 ft∙lb | 21015 N∙m
    OPERATION - Thrust force:
    		120,000 lb | 533.8 kN
    POWER (TIER 3) - Aspiration:
    POWER (TIER 3) - Bore:
    POWER (TIER 3) - Cooling medium :
    POWER (TIER 3) - Displacement :
    POWER (TIER 3) - Emissions compliance Tier 3:
    POWER (TIER 3) - Engine :
    POWER (TIER 3) - Fuel :
    POWER (TIER 3) - Injection :
    POWER (TIER 3) - Manufacturer’s gross power rating :
    POWER (TIER 3) - Number of cylinders :
    POWER (TIER 3) - Peak gross power @ 2,000 rpm:
    POWER (TIER 3) - Rated speed :
    POWER (TIER 3) - Stroke :
    POWER (TIER 4) - Aspiration :
    POWER (TIER 4) - Bore:
    POWER (TIER 4) - Cooling medium:
    POWER (TIER 4) - Displacement :
    POWER (TIER 4) - Emissions compliance :
    POWER (TIER 4) - Engine :
    POWER (TIER 4) - Estimated net power rating:
    POWER (TIER 4) - Fuel:
    POWER (TIER 4) - Injection:
    POWER (TIER 4) - Manufacturer's gross power rating :
    POWER (TIER 4) - Number of cylinders:
    POWER (TIER 4) - Rated speed:
    POWER (TIER 4) - Stroke :
    POWER (TIER 4I) - Aspiration :
    POWER (TIER 4I) - Bore:
    POWER (TIER 4I) - Cooling medium:
    POWER (TIER 4I) - Displacement :
    POWER (TIER 4I) - Emissions compliance :
    POWER (TIER 4I) - Engine :
    POWER (TIER 4I) - Fuel:
    POWER (TIER 4I) - Injection:
    POWER (TIER 4I) - Manufacturer's gross power rating :
    POWER (TIER 4I) - Number of cylinders:
    POWER (TIER 4I) - Rated speed:
    POWER (TIER 4I) - Stroke :
    POWER - Aspiration :
    		Turbocharged & charge air cooled
    POWER - Bore:
    		4.21 in | 107 mm
    POWER - Cooling medium:
    		Liquid
    POWER - Displacement :
    		409 in³ | 6.7 L
    POWER - Emissions compliance :
    		EPA Tier 4F | EU Stage V
    POWER - Engine :
    		Cummins® QSB6.7
    POWER - Fuel:
    		Diesel
    POWER - Injection:
    		Direct
    POWER - Manufacturer's gross power rating :
    		280 hp | 209 kW
    POWER - Number of cylinders:
    		6
    POWER - Power bulge at 2,000 rpm:
    POWER - Rated speed:
    		2,200 rpm
    POWER - Stroke :
    		4.88 in | 124 mm
    POWER PIPE® - Bend radius, min:
    POWER PIPE® - Diameter of drill pipe:
    POWER PIPE® - Diameter of drill pipe, tool joint end:
    POWER PIPE® - Joint diameter:
    POWER PIPE® - Length:
    POWER PIPE® - Length of drill pipe, nominal :
    POWER PIPE® - Pipe diameter :
    POWER PIPE® - Weight of drill pipe & large box (40 pipe):
    POWER PIPE® - Weight of drill pipe & large box (50 pipe):
    POWER PIPE® - Weight of drill pipe & small box (20 pipe):
    POWER PIPE® - Weight of drill pipe & small box (25 pipe):
    POWER PIPE® - Weight of drill pipe, lined:
    POWER PIPE® HD - Bend radius, min:
    		205 ft | 62.5 m
    POWER PIPE® HD - Diameter of drill pipe, tool joint end:
    		4.38 in | 111.2 mm
    POWER PIPE® HD - Joint diameter:
    POWER PIPE® HD - Length:
    POWER PIPE® HD - Length of dril pipe, nominal:
    		240 in | 6.09 m
    POWER PIPE® HD - Pipe diameter:
    		3.95 in | 100 mm
    POWER PIPE® HD - Weight of drill pipe & large box (48 pipe):
    POWER PIPE® HD - Weight of drill pipe & small box (24 pipe):
    POWER PIPE® HD - Weight of drill pipe and large box (28 pipe):
    POWER PIPE® HD - Weight of drill pipe and large box (40 pipe):
    POWER PIPE® HD - Weight of drill pipe and small box (16 pipe):
    POWER PIPE® HD - Weight of drill pipe and small box (20 pipe):
    POWER PIPE® HD - Weight of drill pipe, lined:
    		296 lb | 134.2 kg
    UFE DRILL PIPE - Bend radius, min :
    UFE DRILL PIPE - Diameter of drill pipe:
    UFE DRILL PIPE - Diameter of drill pipe, tool joint end :
    UFE DRILL PIPE - Length of drill pipe, nominal :
    UFE DRILL PIPE - Weight of drill pipe :
    VIBRATION LEVEL - Level:
    		Average vibration transmitted to the operator’s hand and whole body during normal operation does not exceed 2.5 and 0.5 m/sec² respectively.
    WEIGHT CONFIGURATION - Cab option:
    WEIGHT CONFIGURATION - Deduct Tier 3 engine option:
    WEIGHT CONFIGURATION - HD anchor option:
    WEIGHT CONFIGURATION - Standard anchor option:

Other DW Directional Drills Models

John Deere
Wirtgen
Kleemann
Vogele
Hamm
Ditch Witch
Topcon
Magni

Contact

Contact

Consignment

Request a Service

Vehicle being serviced

Please describe your service needs.

Vehicle History

×

JESCO Employee Portal

×

Your session will expire in . If you want to reset this timer, please click OK.

Change Your Preferred Location

×

JESCO Employee Portal
