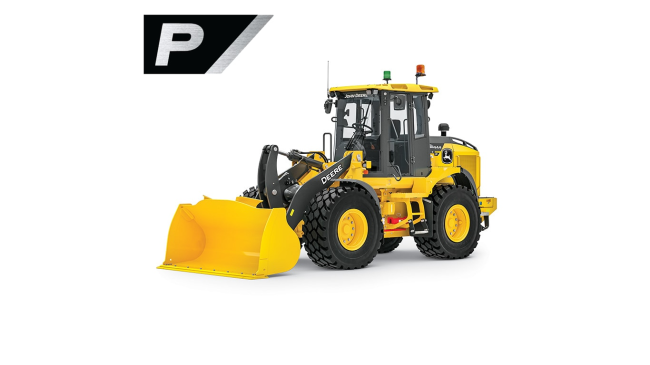

John Deere 444 P-Tier Mid-Size Wheel Loader
Mid-Size Wheel Loaders
How can we help?
(301) 874-5500
Features
-
Engine Net Power: 92 kW (124 hp)
-
Operating Weight: 11 709 (25,814 lb.)
-
Bucket Capacity: 1.9-3.4 m3; (2.5-4.5 cu. yd.)
Specifications
CAPACITIES - Alternator Output, Amp: |
100 |
CAPACITIES - Axle - Front, ltr (gallons (US)): |
22 (5.75) |
CAPACITIES - Axle - Rear, ltr (gallons (US)): |
22 (5.75) |
CAPACITIES - Breakout - Bucket , kgf (lbf): |
8841 (19491) |
CAPACITIES - Fuel Tank, ltr (gallons (US)): |
220 (60) |
CAPACITIES - Heaped Capacity, m³ (yd³): |
1.9 (2.5) |
CAPACITIES - Hydraulic Tank, ltr (gallons (US)): |
82.1 (21.7) |
CAPACITIES - Largest bucket capacity, m³ (yd³): |
1.9 (2.5) |
CAPACITIES - Pump Flow - 1, lt/min (gallons (US) / min): |
136 (36) |
CAPACITIES - Pump Type: |
Piston |
CAPACITIES - Ride Control System: |
Optional |
CAPACITIES - Smallest bucket capacity, m³ (yd³): |
1.9 (2.5) |
CAPACITIES - System Pressure, bar (PSI): |
248.21 (3600) |
CAPACITIES - System Voltage, V: |
24 |
CAPACITIES - Transmission, ltr (gallons (US)): |
18.5 (4.875) |
DIMENSIONS - Ground clearance, mm (inches): |
305 (12) |
DIMENSIONS - Height - Over Cab, mm (ft/in): |
3190 (10 ft 6 in) |
DIMENSIONS - Height - Pivot Pin, mm (ft/in): |
3560 (11 ft 8 in) |
DIMENSIONS - Length - Including Bucket, mm (ft/in): |
6930 (22 ft 9 in) |
DIMENSIONS - Reach - At 2130mm 45° Dump, mm (ft/in): |
1290 (4 ft 3 in) |
DIMENSIONS - Turning Circle - Maximum, mm (ft/in): |
10960 (36 ft ) |
DIMENSIONS - Wheelbase, mm (ft/in): |
2760 (9 ft 1 in) |
DIMENSIONS - Width Over tires - Std, mm (ft/in): |
2415 (7 ft 11 in) |
DRIVELINE - Displacement, ltr (Inches³): |
4.5 (276) |
DRIVELINE - Emission Rating: |
Tier 4 / Stage V |
DRIVELINE - Engine Manufacturer : |
John Deere |
DRIVELINE - Engine Model: |
PowerTech PSS 4045 |
DRIVELINE - Engine Output - Net, kW (hp): |
92 (124) |
DRIVELINE - Front Differential Type: |
Locking |
DRIVELINE - Parking Brake - Type: |
Wet Multi Disc |
DRIVELINE - Rated Speed, rpm: |
1800 |
DRIVELINE - Rear Differential Type: |
Open |
DRIVELINE - Service Brake - Actuation: |
Hydraulic |
DRIVELINE - Service Brake - Location: |
All Wheels |
DRIVELINE - Service Brake - Type: |
Wet Multi Disc |
DRIVELINE - Tire size - Standard: |
17.5 R25 |
DRIVELINE - Torque Rise, %: |
34 |
DRIVELINE - Torque, Nm (lbf / ft): |
550 (405) |
DRIVELINE - Transmission Type: |
Powershift |
WEIGHTS - Operating Weight, kg (lbs): |
11709 (25814) |
Engine
- 4.5L (276 cu. in.) EPA Final Tier 4/EU Stage V John Deere PowerTech™ PSS engine.
Ground-Level Service
- All daily service points including fuel refill are conveniently grouped at ground level on the left side of the machine for easy access.
Comfortable Cab
- Operator station is spacious and comfortable. It features extra legroom, an improved HVAC system, additional storage, and a more adjustable seat than earlier models. Optional premium cab includes a larger monitor and a heated/ventilated seat.
Buckets & Linkage
- Featuring bucket and linkage designs that improve load leveling, material retention, and visibility, these loaders yield more productivity and performance than previous models. Lift path on Z-Bar linkage is now near parallel.
- A wide selection of enhanced production buckets with integrated spill guards, curved side cutters, and impressive rollback delivers elevated bucket-fill performance and material retention compared to earlier offerings.
EH Controls
- Control up to six functions without letting go of the ergonomically designed joystick. Program two industry-exclusive multifunction buttons on the bucket lever to handle any of up to 10 functions.
