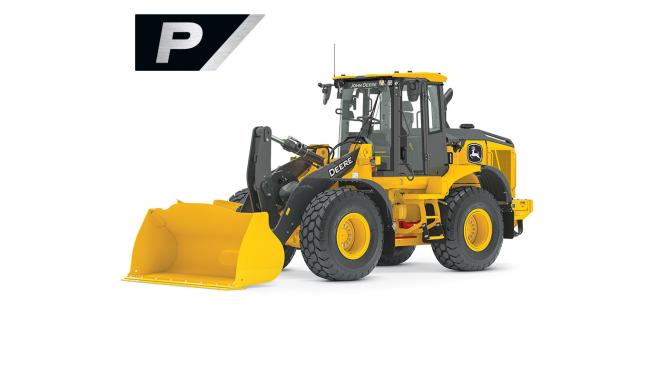

John Deere 524 P-Tier Mid-Size Wheel Loader
Mid-Size Wheel Loaders
How can we help?
(301) 874-5500
Features
-
Bucket Capacity: 1.9-3.4 m3 (2.5-4.5 cu. yd.)
-
Operating Weight: 13 123-13 163 kg (28,931-29,018 lb.)
-
Engine Net Power: 113 kW (152 hp)
Specifications
CAPACITIES - Alternator Output, Amp: |
100 |
CAPACITIES - Axle - Front, ltr (gallons (US)): |
16.6 (4.375) |
CAPACITIES - Axle - Rear, ltr (gallons (US)): |
18 (4.75) |
CAPACITIES - Breakout - Bucket , kgf (lbf): |
11070 (24406) |
CAPACITIES - Fuel Tank, ltr (gallons (US)): |
220 (58) |
CAPACITIES - Heaped Capacity, m³ (yd³): |
2.1 (2.75) |
CAPACITIES - Hydraulic Tank, ltr (gallons (US)): |
82.1 (21.7) |
CAPACITIES - Largest bucket capacity, m³ (yd³): |
2.3 (3) |
CAPACITIES - Pump Flow - 1, lt/min (gallons (US) / min): |
178 (47) |
CAPACITIES - Pump Type: |
Piston |
CAPACITIES - Ride Control System: |
Optional |
CAPACITIES - Smallest bucket capacity, m³ (yd³): |
2.1 (2.75) |
CAPACITIES - System Pressure, bar (PSI): |
249.94 (3625) |
CAPACITIES - System Voltage, V: |
24 |
CAPACITIES - Transmission, ltr (gallons (US)): |
21 (5.55) |
DIMENSIONS - Ground clearance, mm (inches): |
400 (15.7) |
DIMENSIONS - Height - Over Cab, mm (ft/in): |
3330 (10 ft 11 in) |
DIMENSIONS - Height - Pivot Pin, mm (ft/in): |
3810 (12 ft 6 in) |
DIMENSIONS - Length - Including Bucket, mm (ft/in): |
7370 (24 ft 2 in) |
DIMENSIONS - Reach - At 2130mm 45° Dump, mm (ft/in): |
1440 (4 ft 9 in) |
DIMENSIONS - Turning Circle - Maximum, mm (ft/in): |
11400 (37 ft 5 in) |
DIMENSIONS - Wheelbase, mm (ft/in): |
2930 (9 ft 7 in) |
DIMENSIONS - Width Over tires - Std, mm (ft/in): |
2546 (8 ft 4 in) |
DRIVELINE - Displacement, ltr (Inches³): |
6.8 (414) |
DRIVELINE - Emission Rating: |
Tier 4 / Stage V |
DRIVELINE - Engine Manufacturer : |
John Deere |
DRIVELINE - Engine Model: |
PowerTech PVS 6068 |
DRIVELINE - Engine Output - Net, kW (hp): |
113 (152) |
DRIVELINE - Front Differential Type: |
Locking |
DRIVELINE - Parking Brake - Type: |
Wet Multi Disc |
DRIVELINE - Rated Speed, rpm: |
1800 |
DRIVELINE - Rear Differential Type: |
Open |
DRIVELINE - Service Brake - Actuation: |
Hydraulic |
DRIVELINE - Service Brake - Location: |
All Wheels |
DRIVELINE - Service Brake - Type: |
Wet Disc |
DRIVELINE - Tire size - Standard: |
20.5 R25 |
DRIVELINE - Torque Rise, %: |
60 |
DRIVELINE - Torque, Nm (lbf / ft): |
713 (526) |
DRIVELINE - Transmission Type: |
Powershift |
WEIGHTS - Operating Weight, kg (lbs): |
13123 (28931) |
Same-Side Ground-Level Service
- All daily service points including fuel refill are conveniently grouped at ground level on the left side of the machine for easy access.
EH Controls
- Easily control up to six functions without removing your hand from the ergonomically designed joystick. Two industry-exclusive multifunction buttons can each be programmed to handle any of 10 functions selected through the monitor including bucket vibrate and electrohydraulic (EH) Precision mode.
Elevate Your Work
- High-Lift Plus configuration provides an additional 24 inches of hinge-pin height over standard lift height and 12 inches over the High-Lift model. All three lift heights feature near-parallel lift.
Comfortable Cab
- Make yourself at home in an operator station featuring more legroom, an improved HVAC system, additional storage, and a more adjustable seat than previous models.
- Large seven-inch in-cab display with easy-on-the-eyes clarity enables intuitive push-button access to key info.
Buckets & Linkage
- Featuring bucket and linkage designs that improve load leveling, material retention, and visibility, these loaders yield more productivity and performance than previous models.
- A wide selection of enhanced production buckets with integrated spill guards, curved side cutters, and impressive rollback delivers elevated bucket-fill performance and material retention compared to earlier offerings.
