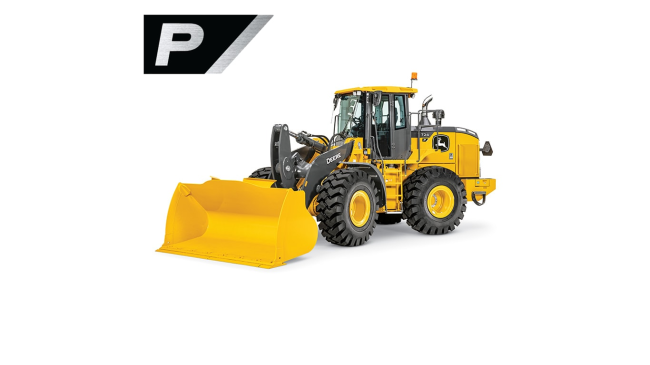

John Deere 724 P-Tier Mid-Size Wheel Loader
Mid-Size Wheel Loaders
How can we help?
(301) 874-5500
Features
-
Bucket Capacity: 3.1-3.8 m3; (4.0-5.0 cu. yd.)
-
Engine Net Power: 200 kW (268 hp)
-
Operating Weight: 19 825-19 859 kg (43,707-43,783 lb.)
Specifications
CAPACITIES - Alternator Output, Amp: |
100 |
CAPACITIES - Axle - Front, ltr (gallons (US)): |
22 (5.75) |
CAPACITIES - Axle - Rear, ltr (gallons (US)): |
22 (5.75) |
CAPACITIES - Breakout - Bucket , kgf (lbf): |
15988 (35248) |
CAPACITIES - Fuel Tank, ltr (gallons (US)): |
351 (92.6) |
CAPACITIES - Heaped Capacity, m³ (yd³): |
3.6 (4.75) |
CAPACITIES - Hydraulic Tank, ltr (gallons (US)): |
105.2 (27.8) |
CAPACITIES - Largest bucket capacity, m³ (yd³): |
3.8 (5) |
CAPACITIES - Pump Flow - 1, lt/min (gallons (US) / min): |
310 (82) |
CAPACITIES - Pump Type: |
Piston |
CAPACITIES - Ride Control System: |
Optional |
CAPACITIES - Smallest bucket capacity, m³ (yd³): |
3.6 (4.75) |
CAPACITIES - System Pressure, bar (PSI): |
275.8 (4000) |
CAPACITIES - System Voltage, V: |
24 |
CAPACITIES - Transmission, ltr (gallons (US)): |
23 (6.075) |
DIMENSIONS - Ground clearance, mm (inches): |
386 (15.2) |
DIMENSIONS - Height - Over Cab, mm (ft/in): |
3450 (11 ft 4 in) |
DIMENSIONS - Height - Pivot Pin, mm (ft/in): |
4160 (13 ft 8 in) |
DIMENSIONS - Length - Including Bucket, mm (ft/in): |
8420 (27 ft 8 in) |
DIMENSIONS - Reach - At 2130mm 45° Dump, mm (ft/in): |
1680 (5 ft 6 in) |
DIMENSIONS - Turning Circle - Maximum, mm (ft/in): |
13100 (42 ft 10 in) |
DIMENSIONS - Wheelbase, mm (ft/in): |
3310 (10 ft 10 in) |
DIMENSIONS - Width Over tires - Std, mm (ft/in): |
2880 (9 ft 5 in) |
DRIVELINE - Displacement, ltr (Inches³): |
9 (548) |
DRIVELINE - Emission Rating: |
Tier 4 / Stage V |
DRIVELINE - Engine Manufacturer : |
John Deere |
DRIVELINE - Engine Model: |
PowerTech PSS 6090 |
DRIVELINE - Engine Output - Net, kW (hp): |
200 (268) |
DRIVELINE - Front Differential Type: |
Locking |
DRIVELINE - Parking Brake - Type: |
Wet Multi Disc |
DRIVELINE - Rated Speed, rpm: |
1800 |
DRIVELINE - Rear Differential Type: |
Open |
DRIVELINE - Service Brake - Actuation: |
Hydraulic |
DRIVELINE - Service Brake - Location: |
All Wheels |
DRIVELINE - Service Brake - Type: |
Wet Disc |
DRIVELINE - Tire size - Standard: |
23.5 R25 |
DRIVELINE - Torque Rise, %: |
48 |
DRIVELINE - Torque, Nm (lbf / ft): |
1325 (977) |
DRIVELINE - Transmission Type: |
Powershift |
WEIGHTS - Operating Weight, kg (lbs): |
19825 (43707) |
Engine
- 9.0L (548 cu. in.) EPA Final Tier 4/EU Stage V John Deere PowerTech™ PSS engine.
EH Controls
- Easily control up to six functions without removing your hand from the ergonomically designed joystick. Two industry-exclusive multifunction buttons can each be programmed to handle any of 10 functions selected through the monitor including bucket vibrate and electrohydraulic (EH) Precision mode.
Ground-Level Service
- All daily service points including fuel refill are conveniently grouped at ground level on the left side of the machine for easy access.
Buckets & Linkage
- Featuring bucket and linkage designs that improve load leveling, material retention, and visibility, these loaders yield more productivity and performance than previous models.
- A wide selection of enhanced production buckets with integrated spill guards, curved side cutters, and impressive rollback delivers elevated bucket-fill performance and material retention compared to earlier offerings.
Roomy Cab
- Operator station features three more inches of legroom, an improved HVAC system, additional storage, and a more adjustable seat than previous models.
- Joystick controls, foot pedals, and sealed-switch module are all ergonomically placed for optimal comfort and convenience.
