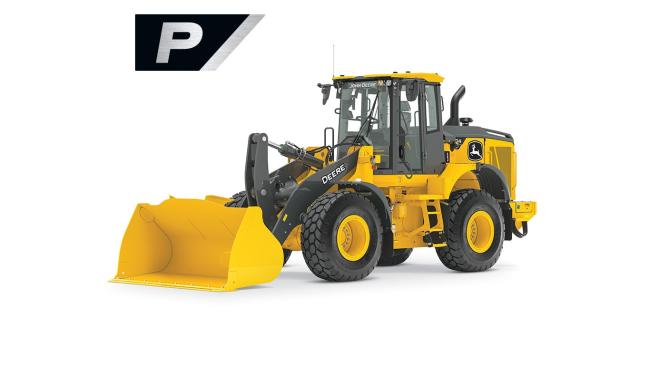

John Deere 624 P-Tier Mid-Size Wheel Loader
Mid-Size Wheel Loaders
How can we help?
(301) 874-5500
Features
-
Bucket Capacity: 1.9-4.0 m3 (2.5-5.25 cu. yd.)
-
Engine Net Power: 143 kW (192 hp)
-
Operating Weight: 15 747-15 790 kg (34,715-34,810 lb.)
Specifications
CAPACITIES - Alternator Output, Amp: |
130 |
CAPACITIES - Axle - Front, ltr (gallons (US)): |
22 (5.75) |
CAPACITIES - Axle - Rear, ltr (gallons (US)): |
17 (4.5) |
CAPACITIES - Breakout - Bucket , kgf (lbf): |
13605 (29994) |
CAPACITIES - Fuel Tank, ltr (gallons (US)): |
299 (79) |
CAPACITIES - Heaped Capacity, m³ (yd³): |
2.7 (3.5) |
CAPACITIES - Hydraulic Tank, ltr (gallons (US)): |
102.8 (27.2) |
CAPACITIES - Largest bucket capacity, m³ (yd³): |
2.9 (3.75) |
CAPACITIES - Pump Flow - 1, lt/min (gallons (US) / min): |
261 (69) |
CAPACITIES - Pump Type: |
Piston |
CAPACITIES - Ride Control System: |
Optional |
CAPACITIES - Smallest bucket capacity, m³ (yd³): |
2.7 (3.5) |
CAPACITIES - System Pressure, bar (PSI): |
248.21 (3675) |
CAPACITIES - System Voltage, V: |
24 |
CAPACITIES - Transmission, ltr (gallons (US)): |
27 (7.125) |
DIMENSIONS - Ground clearance, mm (inches): |
384 (15.1) |
DIMENSIONS - Height - Over Cab, mm (ft/in): |
3400 (11 ft 2 in) |
DIMENSIONS - Height - Pivot Pin, mm (ft/in): |
3960 (13 ft ) |
DIMENSIONS - Length - Including Bucket, mm (ft/in): |
7760 (25 ft 6 in) |
DIMENSIONS - Reach - At 2130mm 45° Dump, mm (ft/in): |
1590 (5 ft 2 in) |
DIMENSIONS - Turning Circle - Maximum, mm (ft/in): |
12040 (39 ft 6 in) |
DIMENSIONS - Wheelbase, mm (ft/in): |
3090 (10 ft 1 in) |
DIMENSIONS - Width Over tires - Std, mm (ft/in): |
2657 (8 ft 8 in) |
DRIVELINE - Displacement, ltr (Inches³): |
6.8 (414) |
DRIVELINE - Emission Rating: |
Tier 4 / Stage V |
DRIVELINE - Engine Manufacturer : |
John Deere |
DRIVELINE - Engine Model: |
PowerTech PVS 6068 |
DRIVELINE - Engine Output - Net, kW (hp): |
143 (192) |
DRIVELINE - Front Differential Type: |
Locking |
DRIVELINE - Parking Brake - Type: |
Wet Multi Disc |
DRIVELINE - Rated Speed, rpm: |
1700 |
DRIVELINE - Rear Differential Type: |
Open |
DRIVELINE - Service Brake - Actuation: |
Hydraulic |
DRIVELINE - Service Brake - Location: |
All Wheels |
DRIVELINE - Service Brake - Type: |
Wet Disc |
DRIVELINE - Tire size - Standard: |
20.5 R25 |
DRIVELINE - Torque Rise, %: |
58 |
DRIVELINE - Torque, Nm (lbf / ft): |
923 (681) |
DRIVELINE - Transmission Type: |
Powershift |
WEIGHTS - Operating Weight, kg (lbs): |
15747 (34715) |
Comfortable Cab
- Make yourself at home in an operator station featuring more legroom, an improved HVAC system, additional storage, and a more adjustable seat than previous models.
- Large seven-inch in-cab display with easy-on-the-eyes clarity enables intuitive push-button access to key info.
EH Controls
- Easily control up to six functions without removing your hand from the ergonomically designed joystick. Two industry-exclusive multifunction buttons can each be programmed to handle any of 10 functions selected through the monitor including bucket vibrate and electrohydraulic (EH) Precision mode.
Buckets & Linkage
- Featuring bucket and linkage designs that improve load leveling, material retention, and visibility, these loaders yield more productivity and performance than previous models.
- A wide selection of enhanced production buckets with integrated spill guards, curved side cutters, and impressive rollback delivers elevated bucket-fill performance and material retention compared to earlier offerings.
Same-Side Ground-Level Service
- All daily service points including fuel refill are conveniently grouped at ground level on the left side of the machine for easy access.
Elevate Your Work
- High-Lift Plus configuration provides an additional 24 inches of hinge-pin height over standard lift height and 12 inches over the High-Lift model. All three lift heights feature near-parallel lift.
